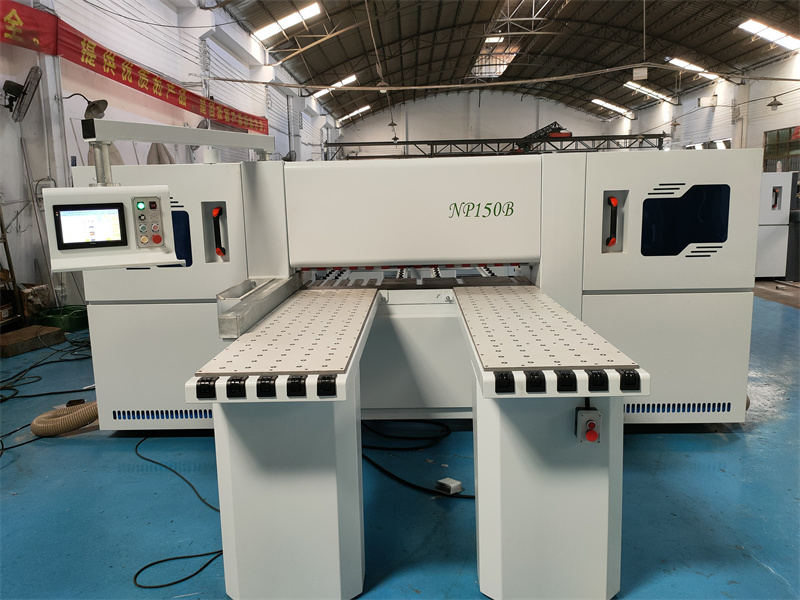

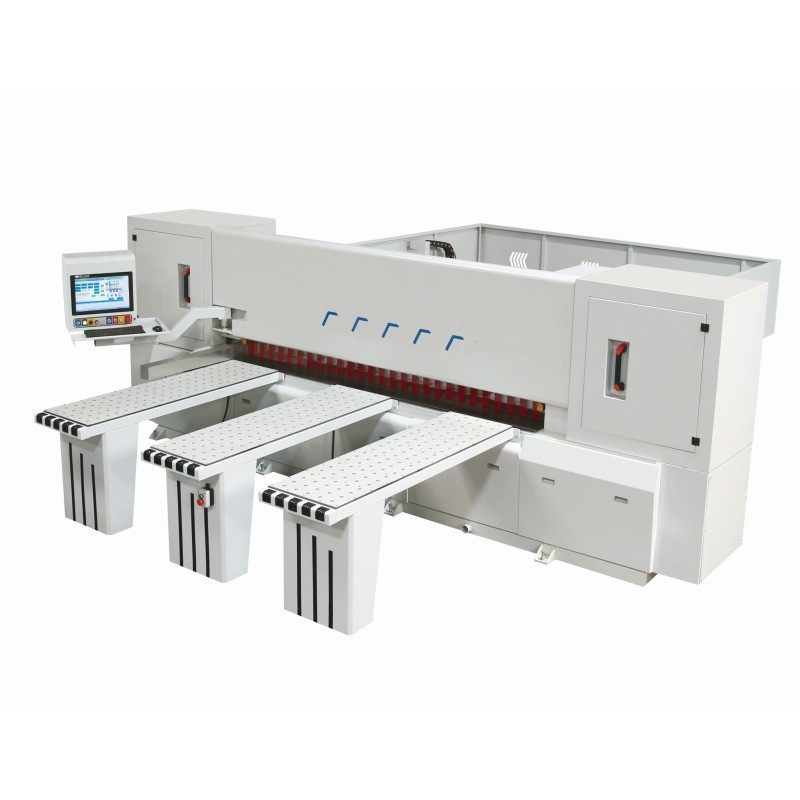

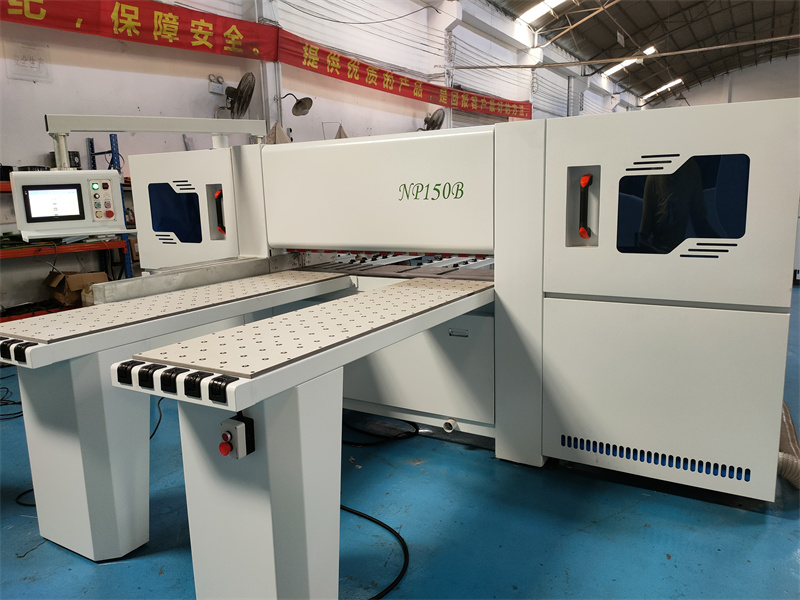

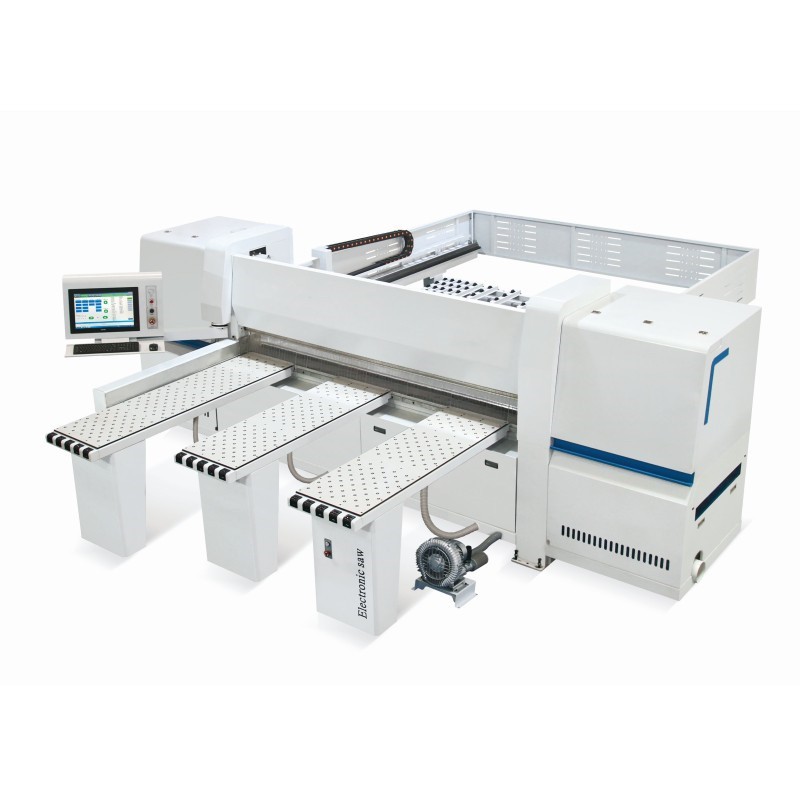

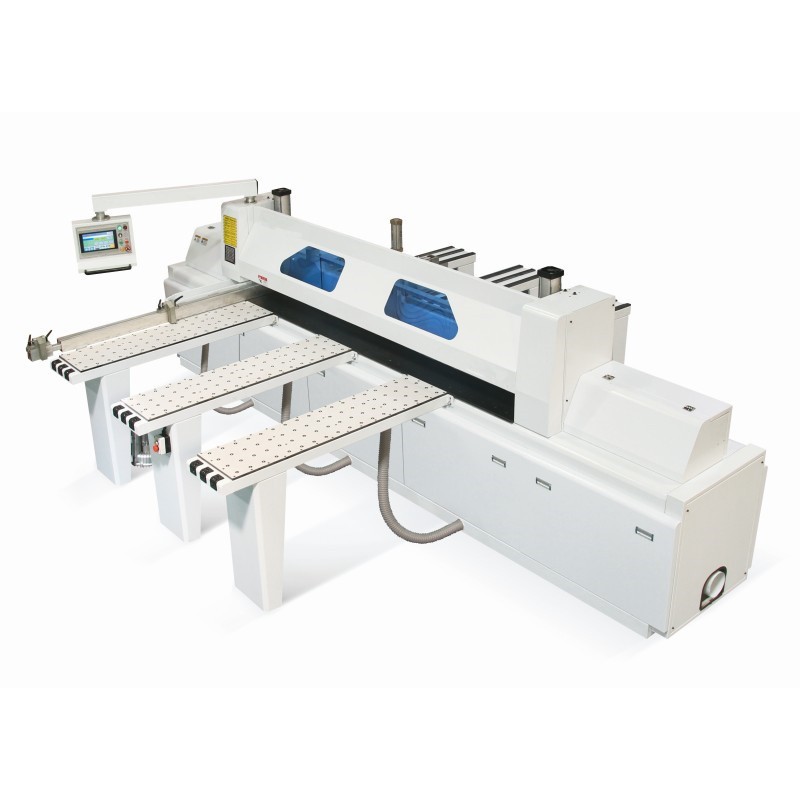

Woodworking Cutting Saw Machine CNC Electric Panel Beam Saw

Main saw power

16.5kw (18.5KW optional)

Auxiliary saw motor power

2.2kw

Robot servo motor

2.0kw

Traction motor power

(rack drive variable frequency speed regulation)

1.5KW

frequency converter speed regulation (optional servo)

Air flotation platform high-pressure fan

3kw

Specification of air flotation table:

1 set 2100x540mm, 2 set 1850x520mm

Maximum sawing width (transverse cutting)

2750mm/ 3300mm

Maximum sawing length (vertical cutting)

2600mm/3300mm

Maximum sawing thickness

100MM

Minimum size of vertical cutting

40mm

Minimum size of transverse cutting

5mm

Positioning mode

automatic

Servo positioning accuracy (precision square guide rail)

0.02mm

Sawing accuracy

± 0.2mm

Outer diameter of main saw blade

φ 350mm/(maximum φ 400mm

Inner diameter of main saw blade

φ 80mm

Rotating speed of main saw

4800r/min

Outer diameter of auxiliary saw blade

Φ 180mm

Inner diameter of auxiliary saw blade

Φ 55mm

Secondary saw blade speed

6100r/min

Sawing speed

0-80 m/min

Return speed

120m/min

Air pressure

0.6-0.7MPA

Number of vacuum cleaners

4

clamping clamps

12,14

Side pushing material

(optional)

Computer optimization system

(optional)

The overall dimensions of the machine

5500x5300x1800mm, 5900x6200x1800mm,

Total power

26kw (optional 28kw)
